Brand: MSI
Model: B850M GAMING PLUS WIFI6E
Form Factor: mATX (243.84 mm x 243.84 mm)
Chipset Type: AMD B850
Chipset Manufacturer: AMD
Chipset Socket: AM5
Compatible CPUs: AMD Ryzen 9000/8000/7000 Series Desktop Processors

Memory:
- 4 x DDR5 UDIMM slots, Maximum Memory Capacity 256GB
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM (Clock Driver bypass mode only)
- Supports AMD EXPO
- Supports DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Storage:
- 2 x M.2 slots
- 4 x SATA 6G connectors
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Expansion Slots:
- 1 × PCI-E x16 slot
- 2 × PCI-E x1 slots
- PCI_E1: PCIe 3.0 (from chipset) supports up to x1
- PCI_E2: PCIe 4.0 (from CPU) supports up to x16
- PCI_E3: PCIe 3.0 (from chipset) supports up to x1

Network:
- Realtek 8125D 2.5G LAN
- Wi-Fi 6E
- Bluetooth 5.3

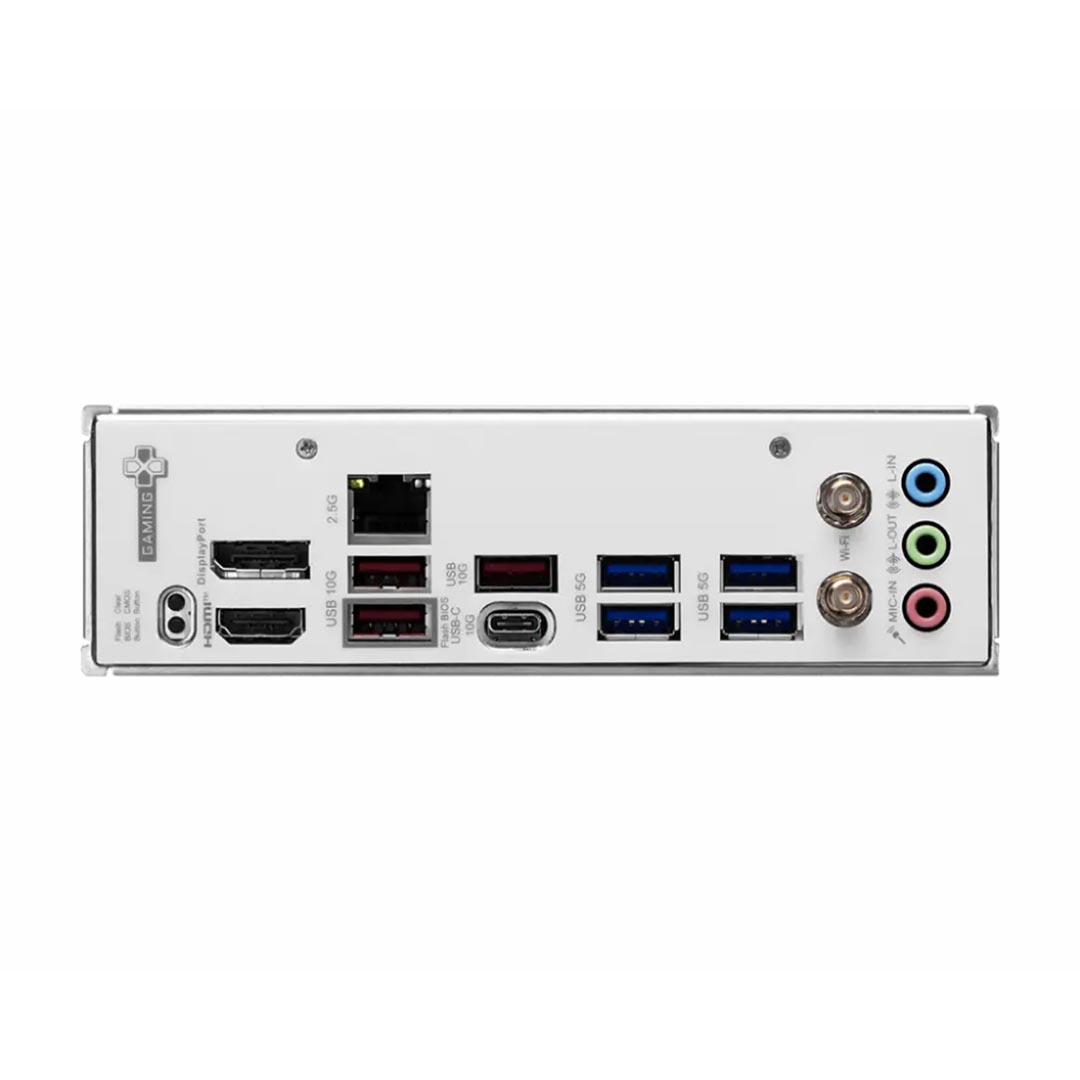

Ports (Back Panel):
- 1 x Clear CMOS Button
- 1 x DisplayPort 1.4 (max resolution 4K 60Hz)
- 1 x HDMI (HDMI 2.1, max resolution 4K 60Hz)
- 1 x Flash BIOS Button
- 3 x USB 10Gbps Type-A
- 1 x USB 10Gbps Type-C
- 4 x USB 5Gbps Type-A
- 1 x RJ-45 LAN port (2.5G)
- Wi-Fi / Bluetooth antenna connectors
- HD Audio Connectors

Ports (Front):
- 4 x USB 2.0
- 2 x USB 5Gbps Type-A
- 1 x USB 10Gbps Type-C

Audio:
- Realtek ALC897 Codec
- 7.1-Channel High Definition Audio

Operating System: Windows 11 64-bit
