MSI PRO B650M-P Motherboard , AMD mATX Black

Key features

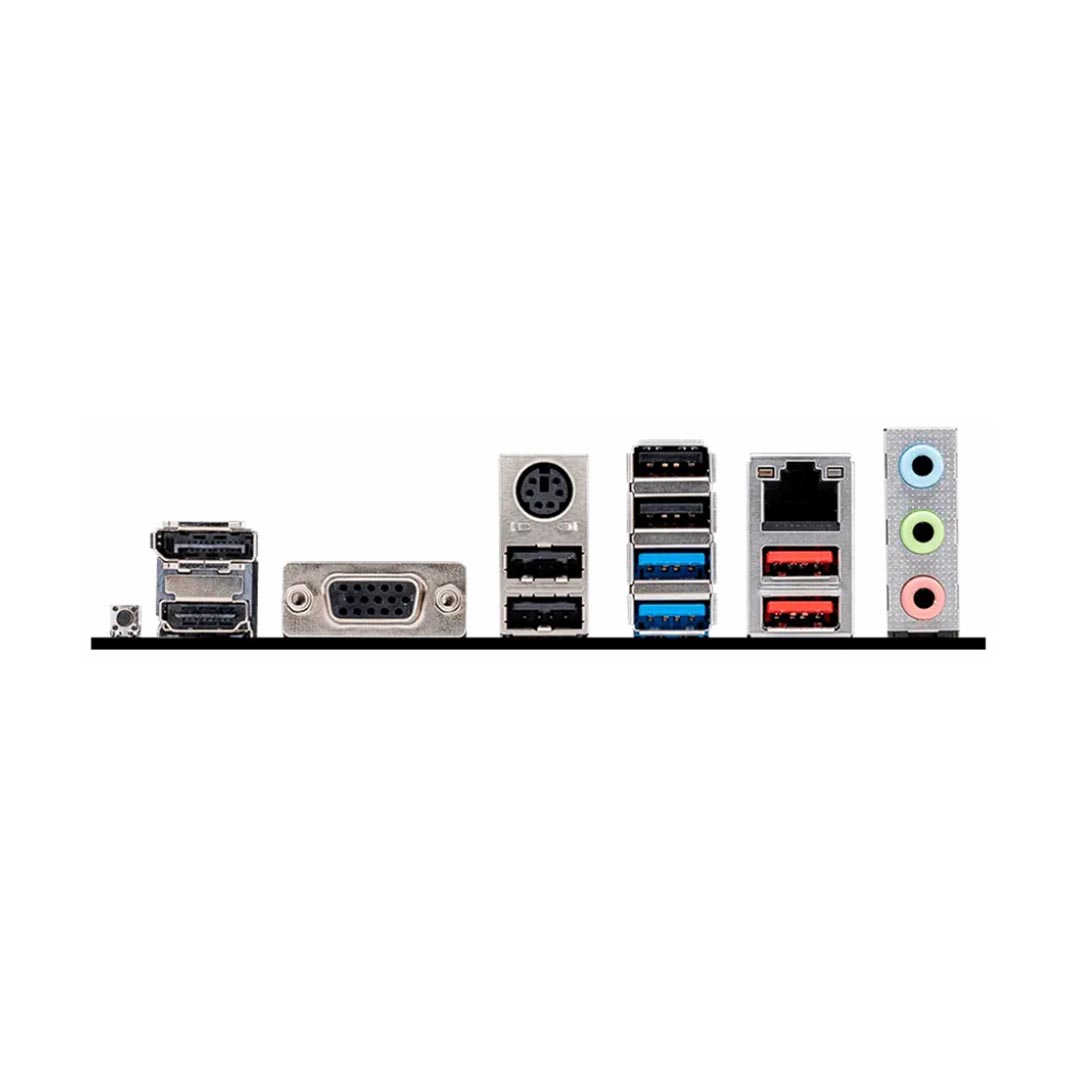

Brand: MSI Model: PRO B650M-P Form Factor: mATX (243.84 mm x 243.84 mm) Chipset Type: AMD B650 Chipset Manufacturer: AMD Chipset Socket: AM5 Compatible CPUs: AMD Ryzen 9000/8000/7000 Series Desktop Processors Memory: - 4 x DDR5 slots, Maximum Memory Capacity 256GB - Supports Dual-Channel mode - Supports non-ECC, un-buffered memory - Supports AMD EXPO - Supports DDR5 7200+(OC) Storage: - 2 x M.2 slots - 4 x SATA 6G connectors - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Expansion Slots: - 1 × PCI-E x16 slot - 2 × PCI-E x1 slots - PCI_E1: PCIe 4 (from CPU) supports up to x16 - PCI_E2: PCIe 3 (from chipset) supports up to x1 - PCI_E3: PCIe 3 (from chipset) supports up to x1 Network: - Realtek 8125BG 2.5G LAN Ports (Back Panel): - 1 x DisplayPort - 1 x VGA - 1 x HDMI - 1 x Flash BIOS Button - 2 x USB 10Gbps Type-A (USB 3.2 Gen 2) - 2 x USB 5Gbps Type-A (USB 3.2 Gen 1) - 4 x USB 2 - 1 x PS/2 Keyboard/Mouse port - 1 x RJ-45 LAN port (2.5G) - Audio connectors Ports (Front): - 4 x USB 2 - 2 x USB 5Gbps Type-A - 1 x USB 10Gbps Type-C Audio: - Realtek ALC897 Codec - 7.1-Channel High Definition Audio Operating System: Windows 10 64-bit

Specifications
