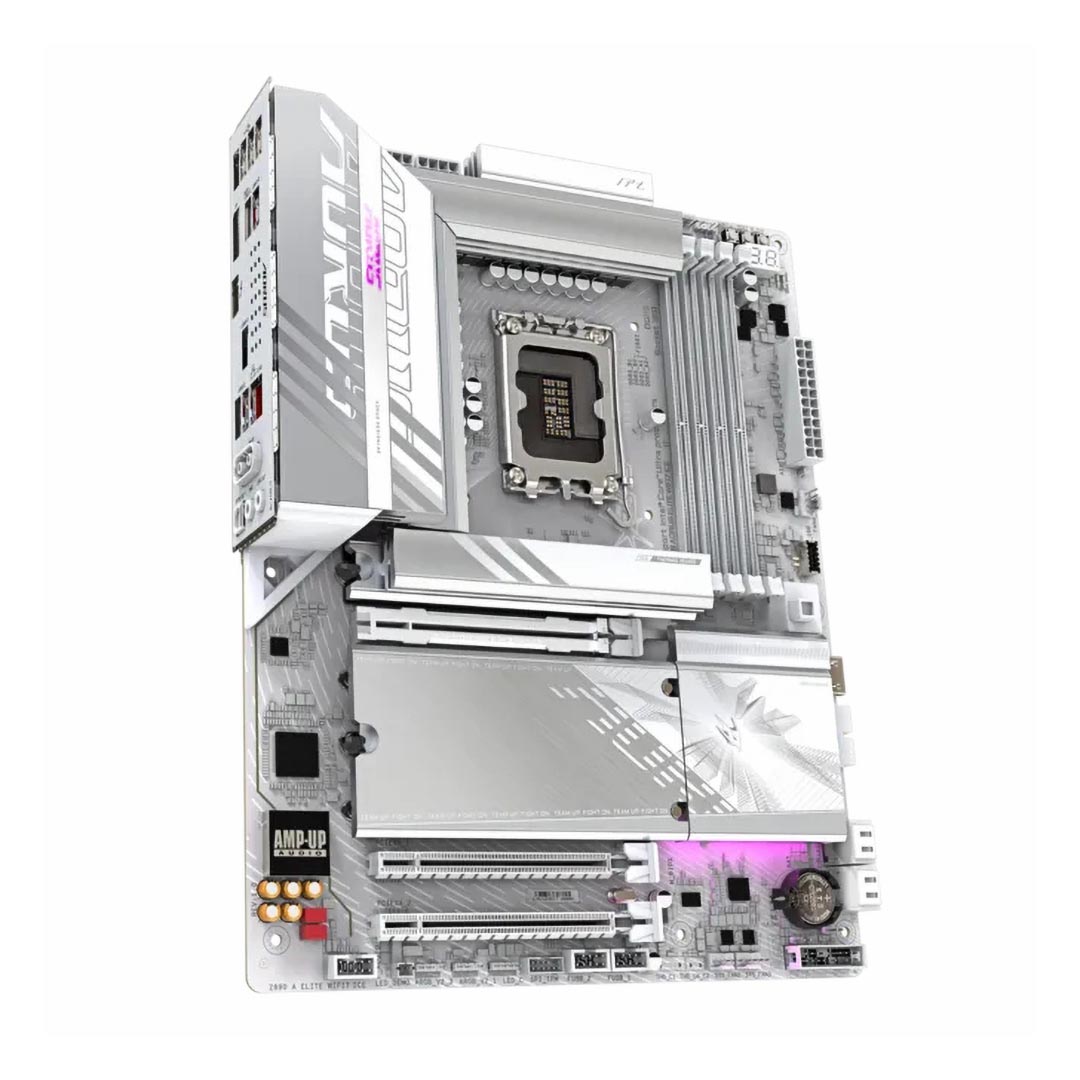

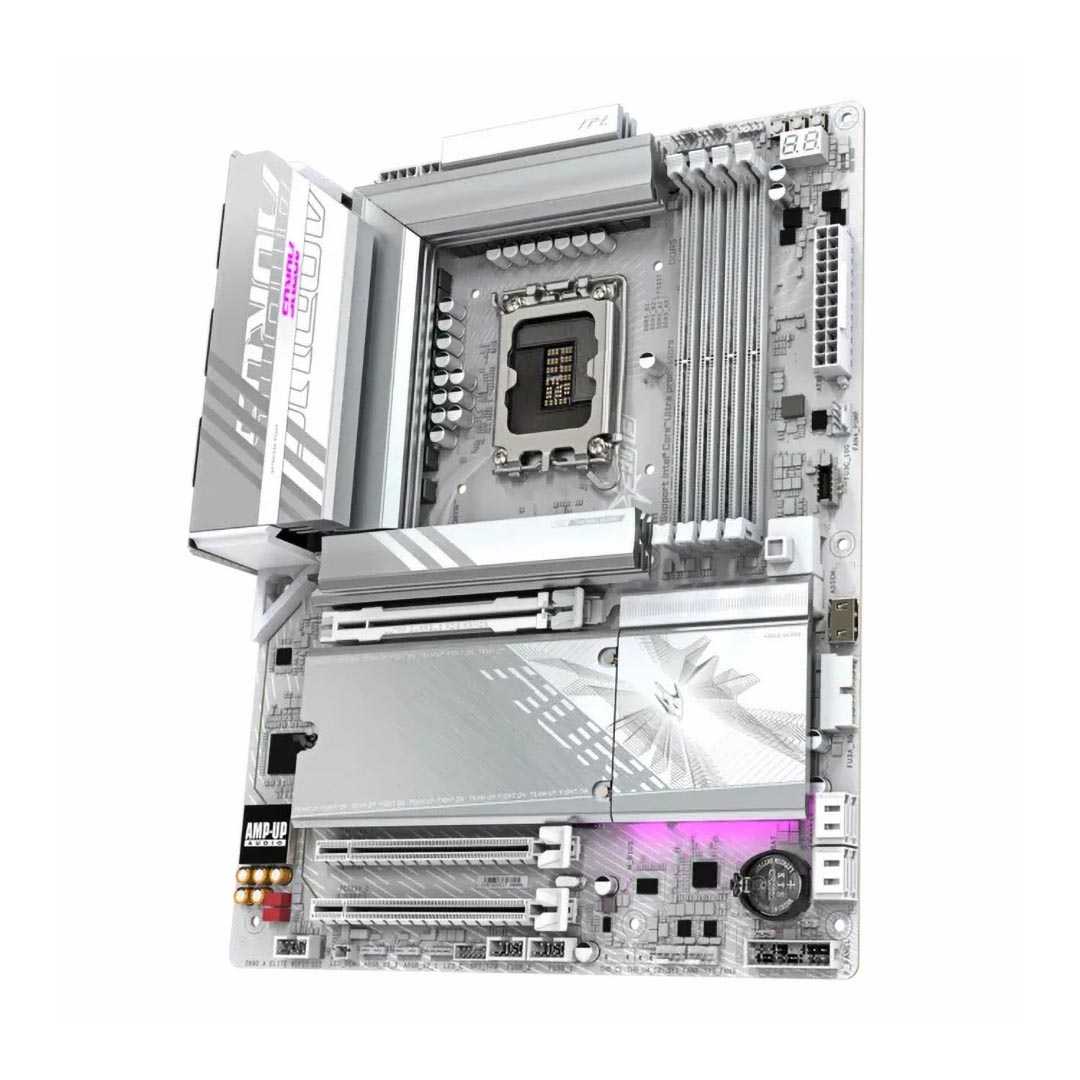

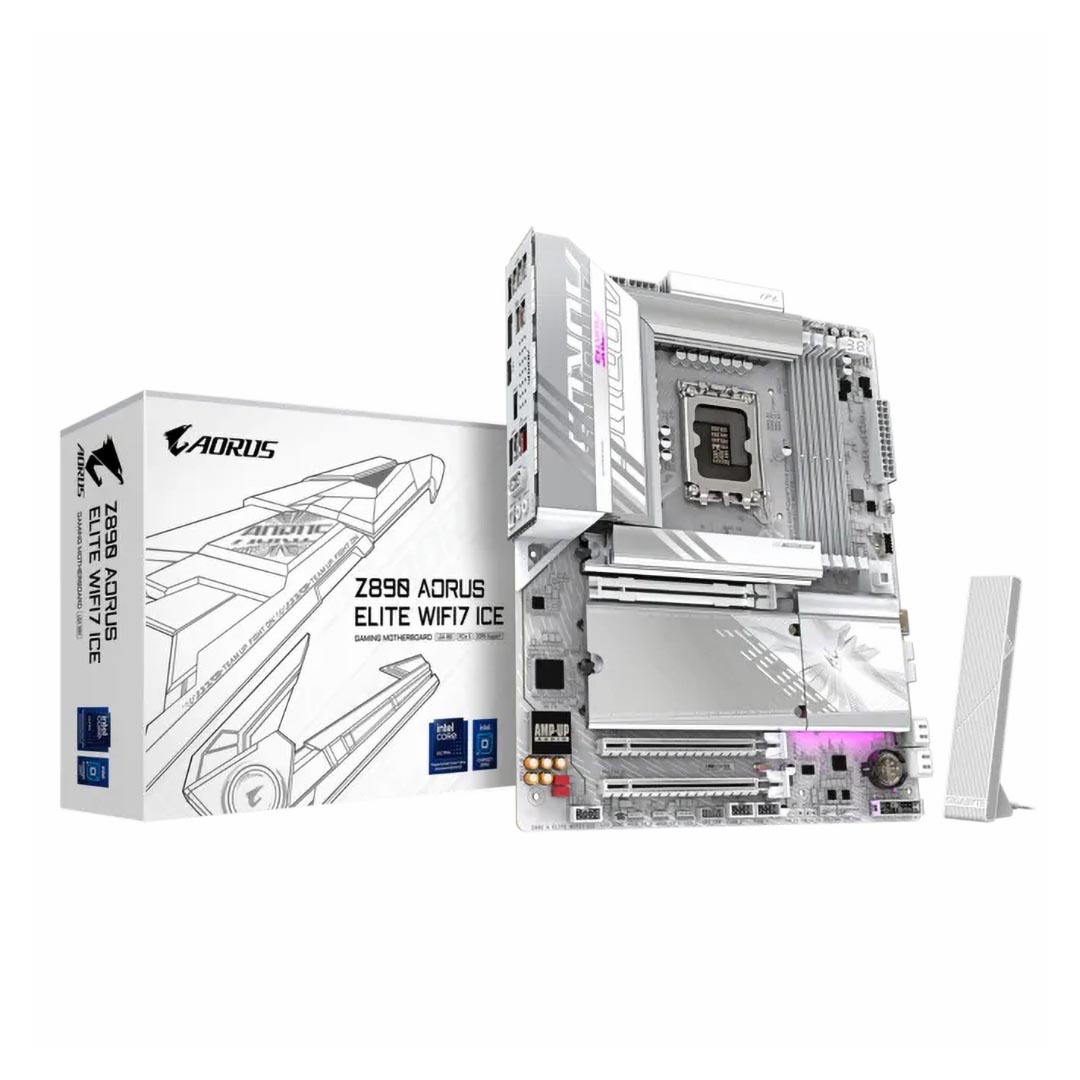

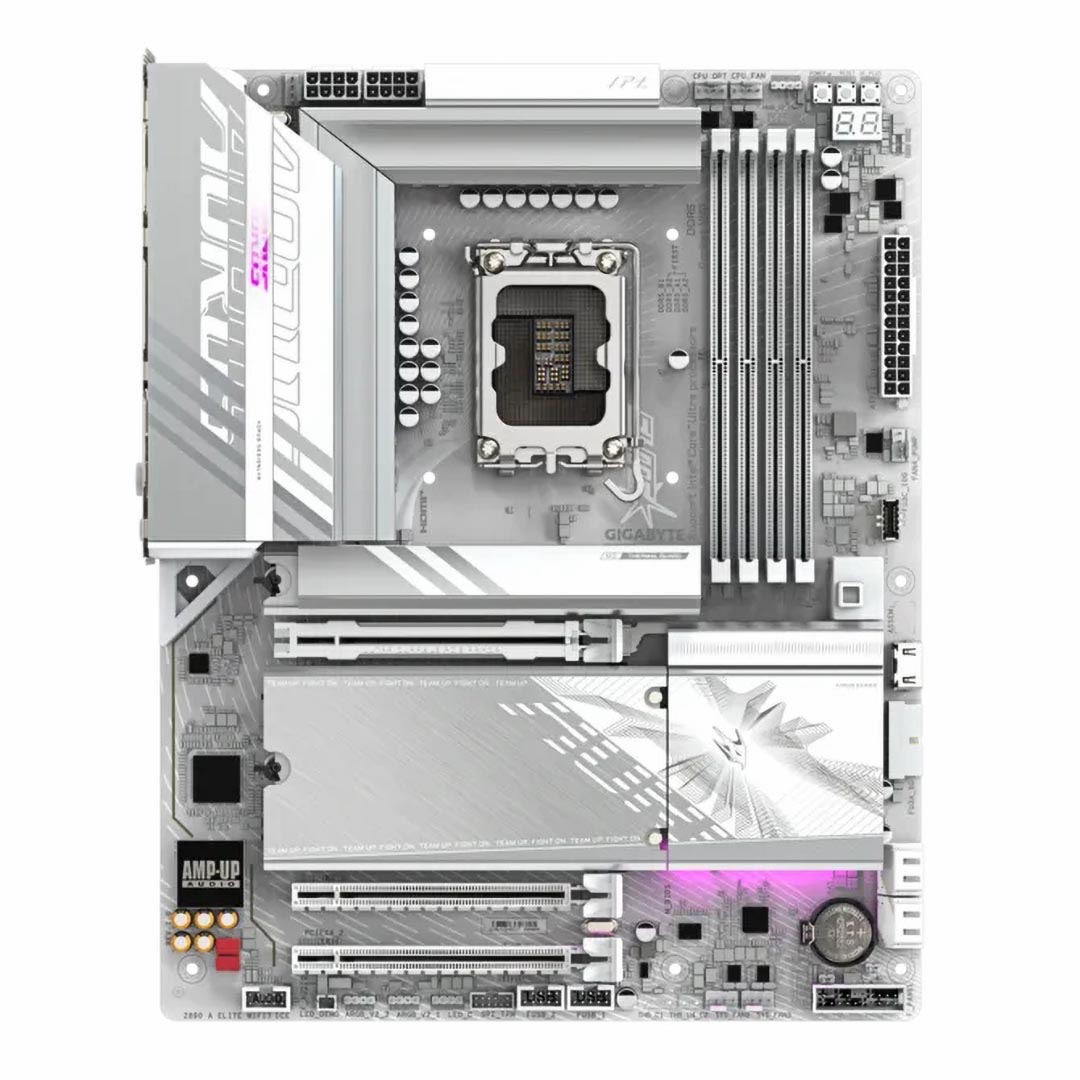

Gigabyte Z890 AORUS ELITE WIFI7 ICE Motherboard , Intel ATX White

Key features

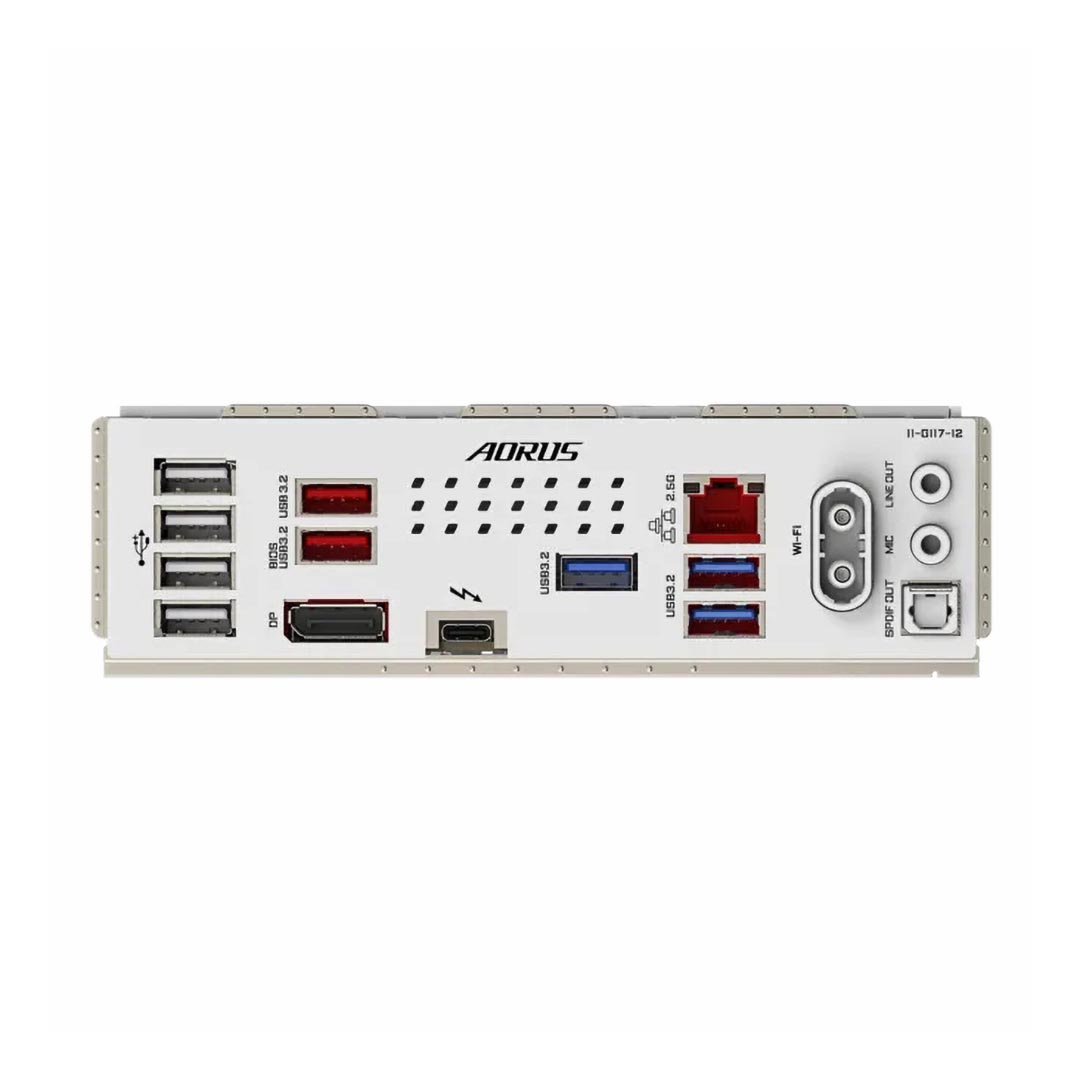

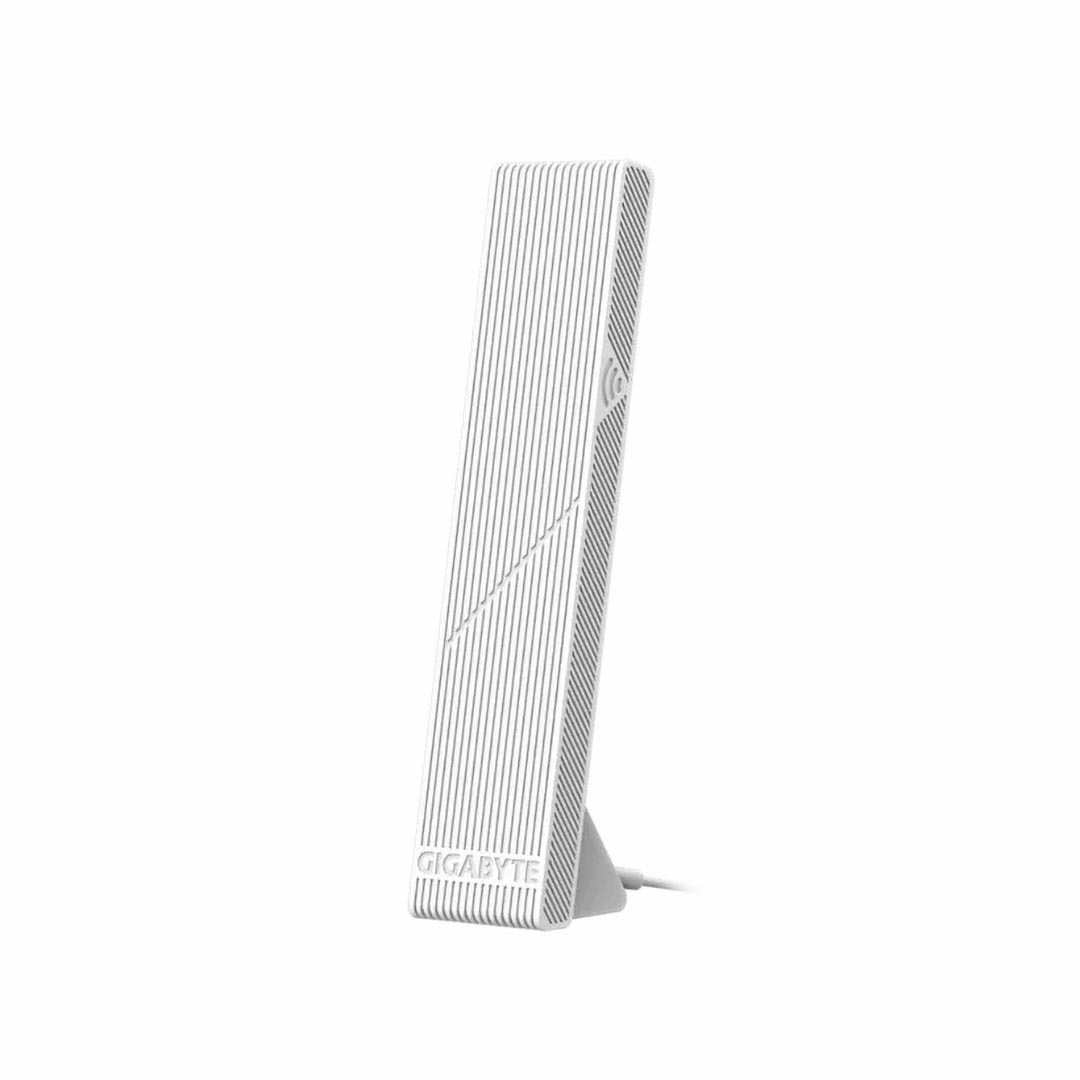

Brand: Gigabyte Model: Z890 AORUS ELITE WIFI7 ICE Form Factor: ATX (30.5 cm x 24.4 cm) Chipset Type: Intel Z890 Chipset Manufacturer: Intel Chipset Socket: Intel LGA 1851 Compatible CPUs: Intel Core Ultra Processors (Series 2) Memory: - 4 x DDR5 DIMM sockets supporting up to 256 GB - Dual Channel Memory Architecture - Supports DDR5 up to 9200 (O.C.) MT/s - Supports Intel XMP - Supports CUDIMM memory modules - Supports ECC Un-buffered DIMM (operate in non-ECC mode) - Supports non-ECC Un-buffered DIMM Storage: - 4 x M.2 connectors (Key M) - 4 x SATA 6Gb/s connectors - RAID 0 / 1 / 5 / 10 support for NVMe SSD and SATA storage devices Expansion Slots: - 1 x PCIe 5 x16 slot (PCIEX16) — CPU - 2 x PCIe 4 x16 slots running at x4 (PCIEX4_1, PCIEX4_2) — Chipset Network: - Realtek 2.5GbE LAN chip - Wi-Fi 7 (802.11be) - Bluetooth 5.4 Ports (Back Panel): - 1 x DisplayPort - 1 x Intel Thunderbolt 4 / USB4 Type-C port - 2 x USB 3.2 Gen 2 Type-A ports - 3 x USB 3.2 Gen 1 ports - 4 x USB 2/1.1 ports - 1 x RJ-45 port - 1 x Optical S/PDIF Out connector - 2 x Audio jacks Ports (Internal Headers): - 1 x USB Type-C header (USB 3.2 Gen 2 support) - 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) - 2 x USB 2/1.1 headers (supports 4 additional USB 2 ports) - 1 x Front HDMI port (supports max. 1920x1080@30Hz) Audio: - Realtek ALC1220 CODEC - High Definition Audio - 2/4/5.1/7.1-channel - Support for S/PDIF Out - 1 x Optical S/PDIF Out connector Operating System: Windows 11 64-bit

Specifications
