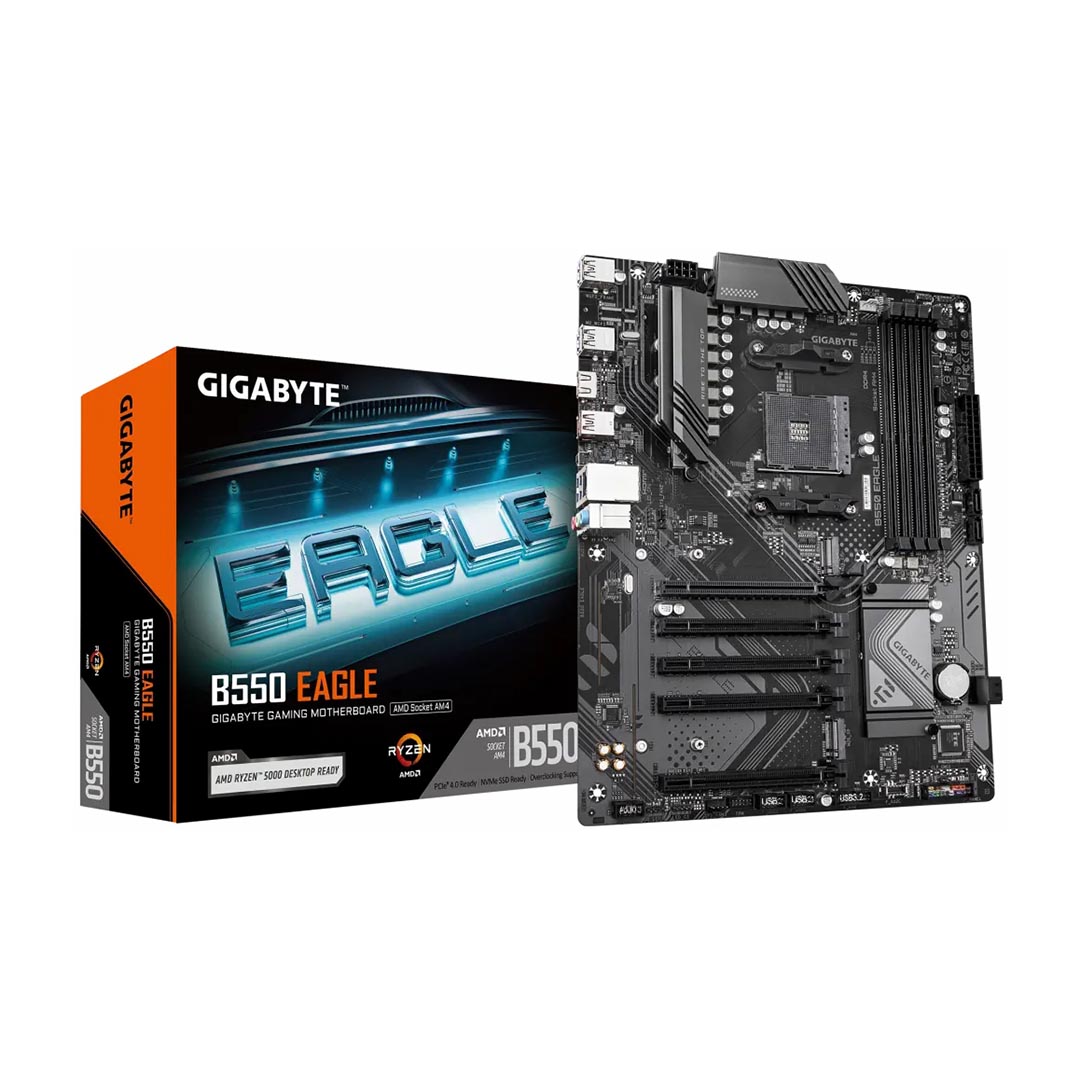

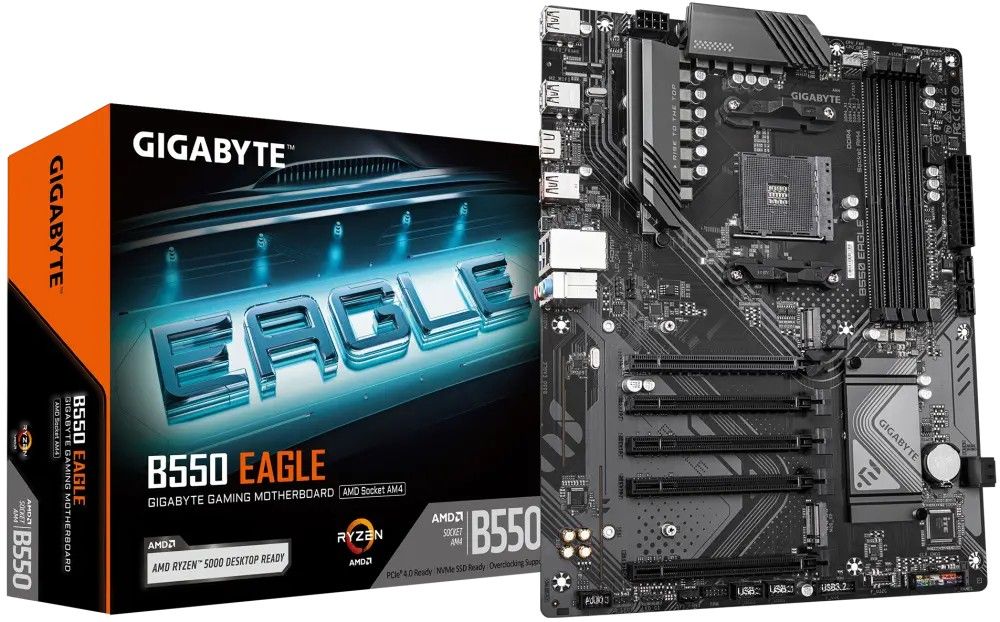

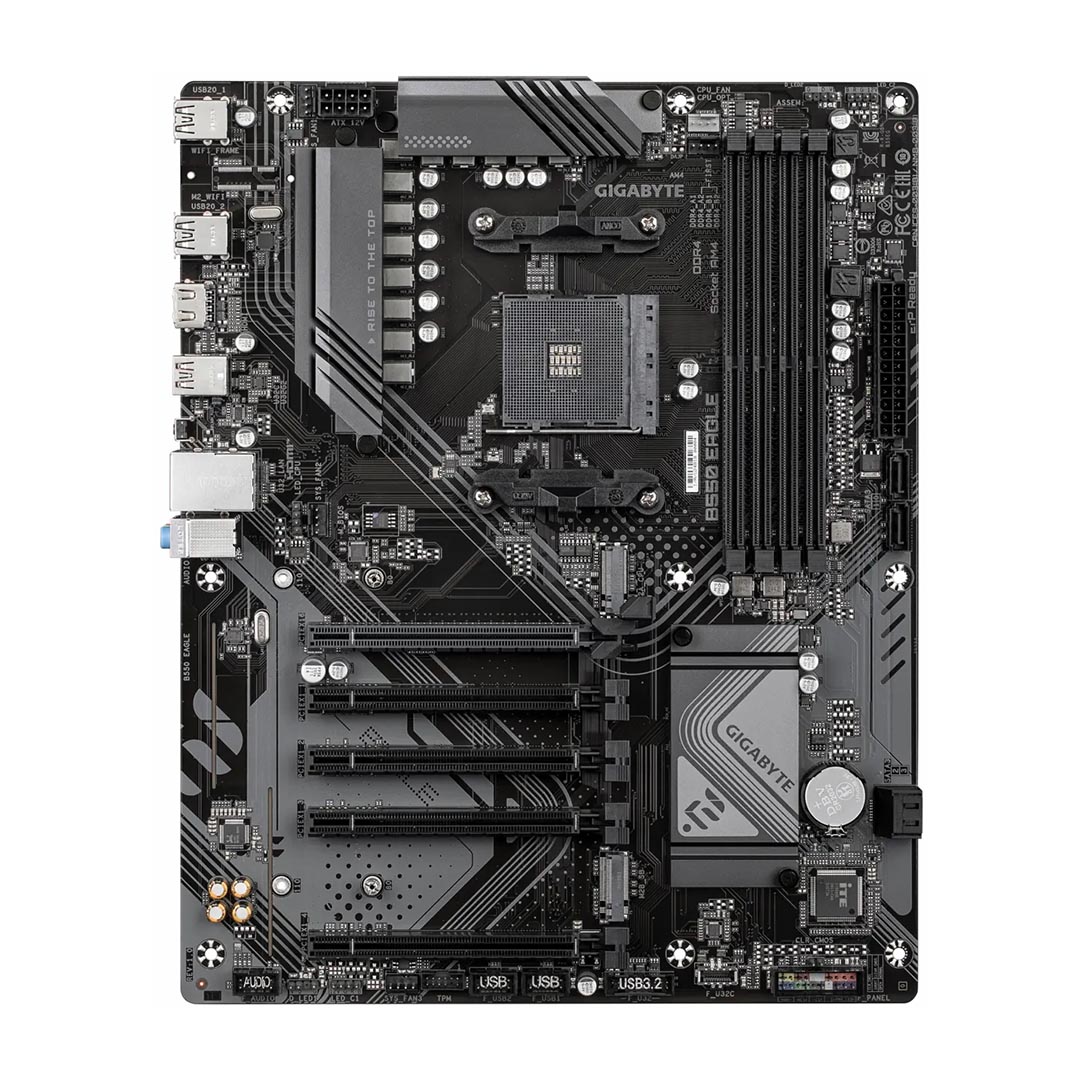

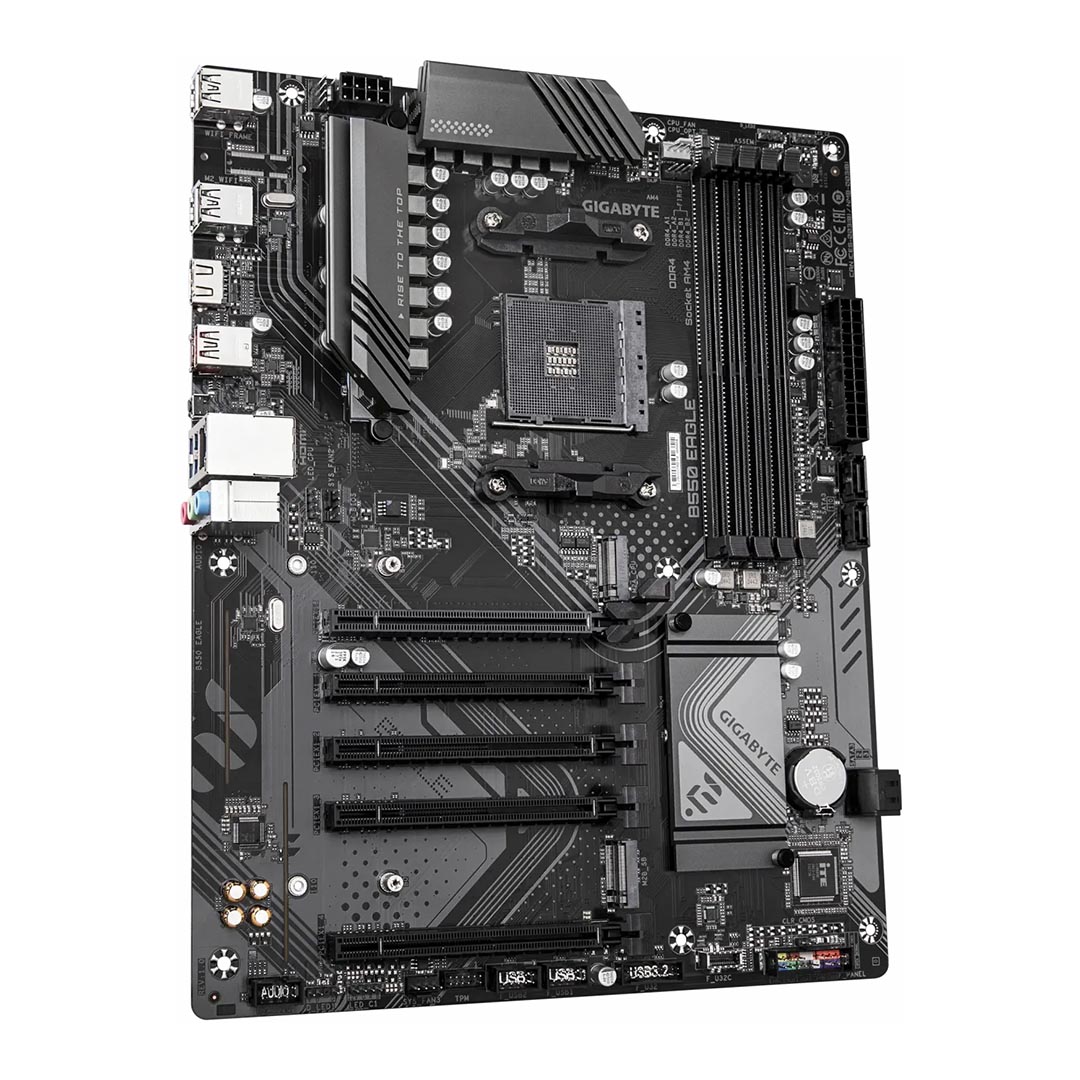

Gigabyte B550 EAGLE Motherboard , AMD ATX Black

Key features

Brand: Gigabyte Model: B550 EAGLE Form Factor: ATX (30.5 cm x 24.4 cm) Chipset Type: AMD B550 Chipset Manufacturer: AMD Chipset Socket: AMD AM4 Compatible CPUs: AMD Ryzen 5000 G-Series / 5000 Series / 4000 G-Series / 3000 G-Series / 3000 Series Processors Memory: - 4 x DDR4 DIMM sockets supporting up to 128 GB - Dual Channel Memory Architecture - Supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 MT/s - Supports Intel XMP - Supports ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode) - Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Storage: - 2 x M.2 connectors (Key M) - 4 x SATA 6Gb/s connectors - RAID 0 / 1 / 10 support for NVMe SSD and SATA storage devices Expansion Slots: - 1 x PCIe 4 x16 slot (PCIEX16) — CPU - 4 x PCIe 3 x16 slots running at x1 — Chipset Network: - Realtek GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps) Back Panel USB Ports - 1 × USB 3.2 Gen 2 Type-A (red) - 1 × USB Type-C (USB 3.2 Gen 1) - 2 × USB 3.2 Gen 1 - 4 × USB 2 / 1.1 Front Panel USB Ports (Internal Headers) - 1 × USB Type-C (USB 3.2 Gen 1) via internal header - 2 × USB 3.2 Gen 1 via internal headers - 4 × USB 2 / 1.1 via internal headers Audio: - Realtek Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel Operating System: Windows 11 64-bit / Windows 10 64-bit
