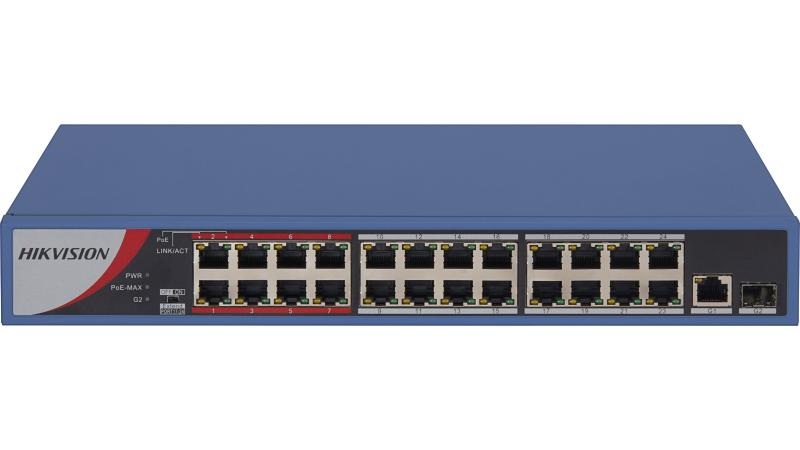

Hikvision PoE Switch , 24 Ports , Blue - DS-3E0326P-E/M(B)
5,525LE
5,800LE
ColorBlue
Number of Ports24
Warranty30 days warranty
Product dimensions335 mm × 44.5 mm × 226 mm
Sold bySAMA LINK
Specifications
| Brand | Hikvision |
| Port Type | Multi Ports |
| Material | Metal |
| Dimensions | 335 mm × 44.5 mm × 226 mm |
| Connectivity | 24 × 10/100 Mbps PoE ports , 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port , PoE Standard: IEEE 802.3af / 802.3at , PoE pins: End-span (1/2-, 3/6+), Mid-span (4/5+, 7/8-), 8-pin (1/2-, 3/6+, 4/5+, 7/8-) |
| Model Number |
Key features
Brand: Hikvision
Type: POE Switch
Key Features:
-Supports Standard mode and Extend mode
-High-priority ports: Ports 1–8
-Long-range PoE on Ports 17–24 (up to 300 m at 10 Mbps)
-Store-and-forward switching
-PoE support with a total power budget of 230 W, max 30 W per port
Connectivity:
24 × 10/100 Mbps PoE ports
1 × Gigabit RJ45 port
1 × Gigabit fiber optical port
PoE Standard: IEEE 802.3af / 802.3at
PoE pins: End-span (1/2-, 3/6+), Mid-span (4/5+, 7/8-), 8-pin (1/2-, 3/6+, 4/5+, 7/8-)
Bandwidth: Switching capacity: 8.8 Gbps, Packet forwarding rate: 6.547 Mpps
Model Number: DS-3E0326P-E/M(B)
