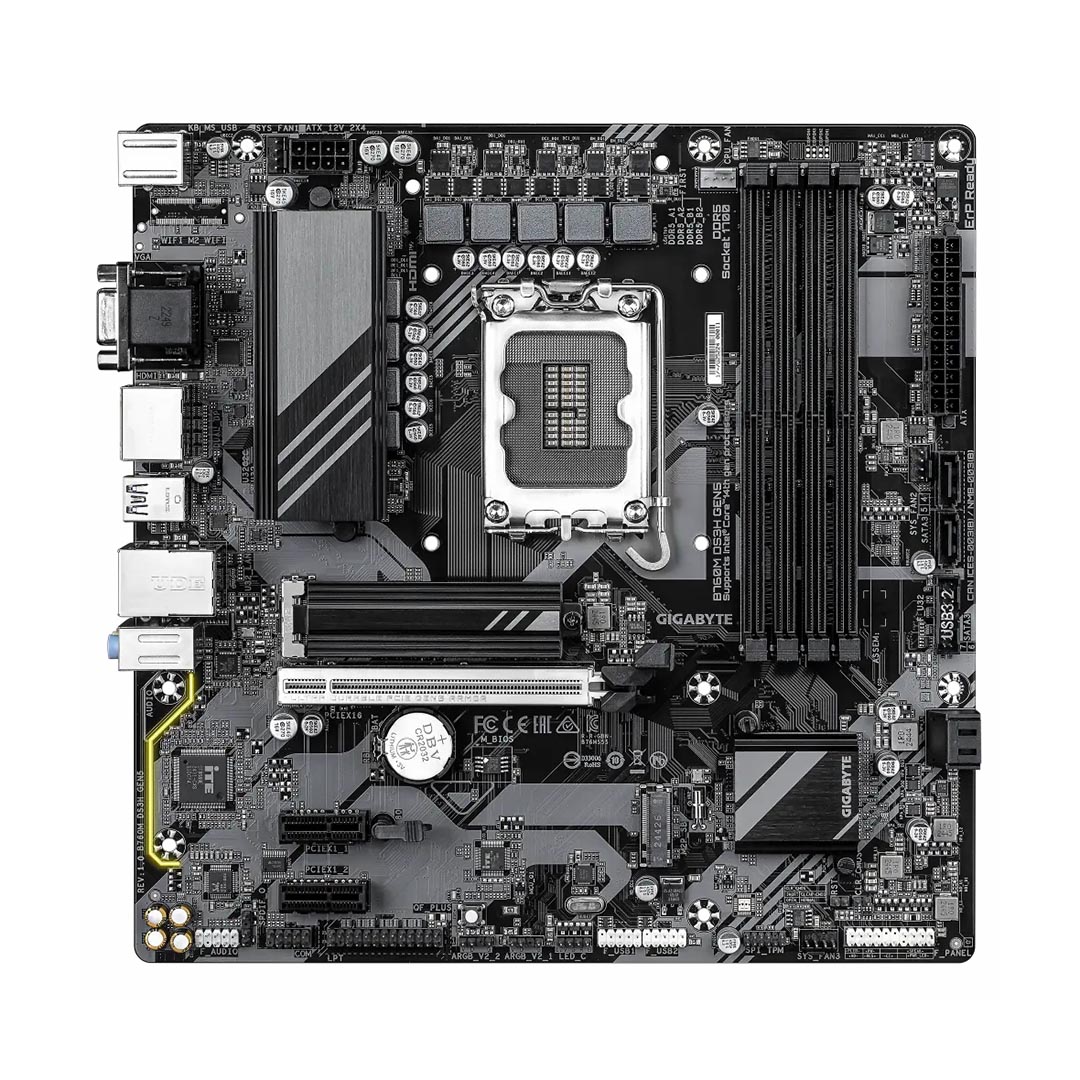

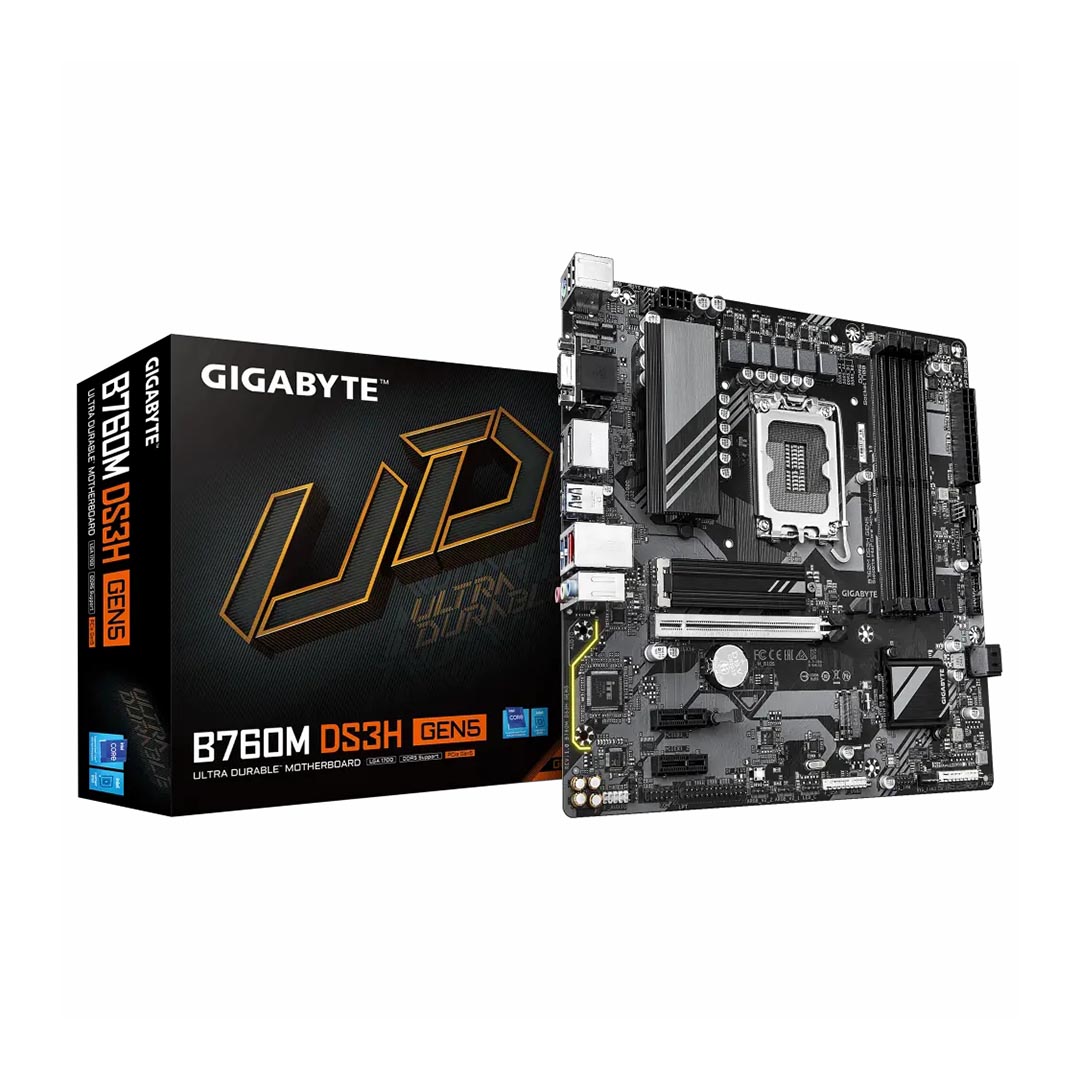

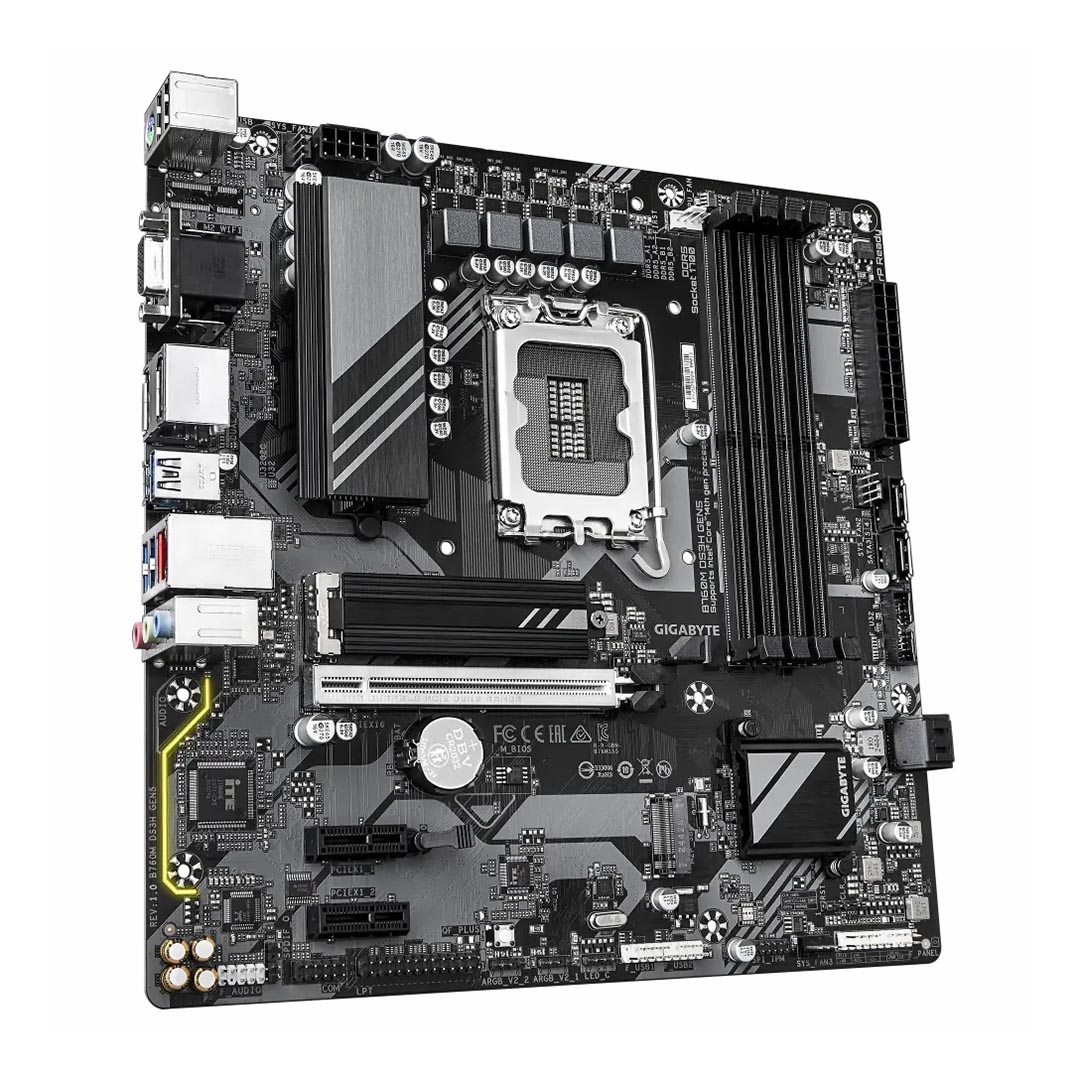

Gigabyte B760M DS3H GEN5 Motherboard , Intel mATX Black

Specifications

Key features

Brand: Gigabyte Model: B760M DS3H GEN5 Form Factor: Micro ATX (24.4 cm x 24.4 cm) Chipset Type: Intel B760 Chipset Manufacturer: Intel Chipset Socket: LGA1700 Compatible CPUs: Intel Core 14th/13th/12th Gen Processors, Pentium Gold and Celeron Processors Memory: - 4 x DDR5 DIMM sockets supporting up to 256 GB - Supports DDR5 up to 7600 (O.C.) MT/s - Dual channel memory architecture - Supports ECC Un-buffered DIMM - Supports non-ECC Un-buffered DIMM - Supports Intel Extreme Memory Profile (XMP) Storage: - 2 x M.2 connectors - 4 x SATA 6Gb/s connectors - RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Expansion Slots: - 1 x PCI Express x16 slot: PCIe 5 running at x16 — CPU - 2 x PCI Express x1 slots: PCIe 3 running at x1 — Chipset Network: - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Back Panel USB Ports - 1 × USB Type-C (USB 3.2 Gen 2) - 3 × USB 3.2 Gen 1 - 2 × USB 2 / 1.1 Front Panel USB Ports (Internal Headers) - 2 × USB 3.2 Gen 1 (via internal header) - 4 × USB 2 / 1.1 (via internal USB headers) Audio: - Realtek Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel - Support for S/PDIF Out Operating System: Windows 11 64-bit, Windows 10 64-bit
